Diving Diving cylinders Steel Diving Cylinders

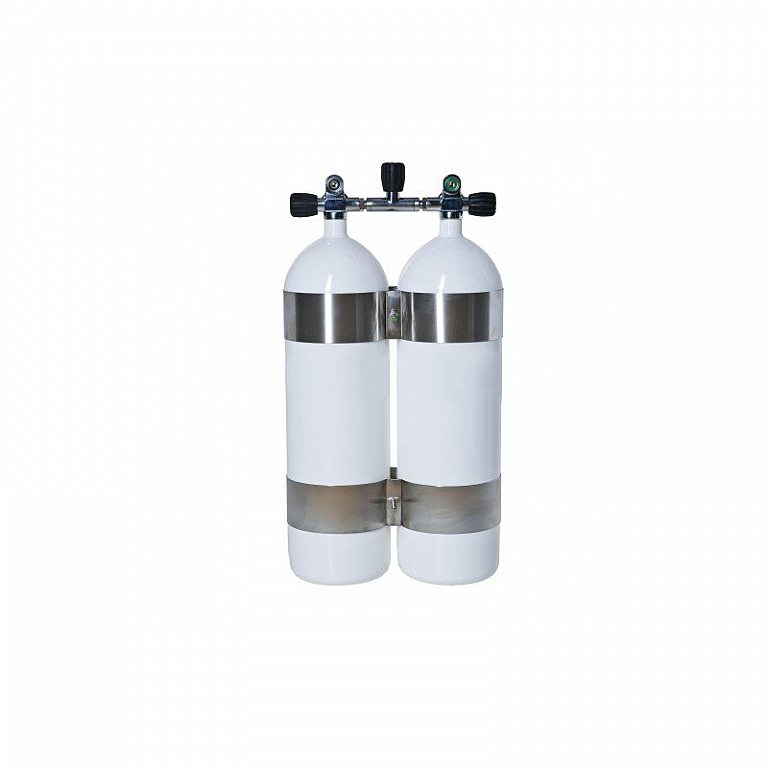

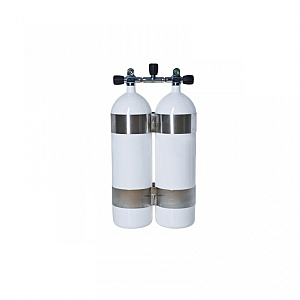

Cylinder Vítkovice Twin 2x10 L/230 bar concav

Cylinder Vítkovice Twin 2x10 L/230 bar concav
Cylinder Vítkovice Twin 2x10 L/230 bar concav

Cylinder Vítkovice Twin 2x10 L/230 bar concav

Brand: Vítkovice

Complete twin assembly with manifold and steel rings. Bottle: Volume: 10 L. Operating pressure: 230 bar. Diameter: 171 mm. Concave bottom. Weight: 11.9 kg. Height: 615 mm. Thread: M25×2. Surface treatment: metallization top coat. White color. Valve: Complete manifold - right and…

Product details Cylinder Vítkovice Twin 2x10 L/230 bar concav

Complete twin assembly with manifold and steel rings.

Bottle:

  • Volume: 10 L.
  • Operating pressure: 230 bar.
  • Diameter: 171 mm.
  • Concave bottom.
  • Weight: 11.9 kg.
  • Height: 615 mm.
  • Thread: M25×2.
  • Surface treatment: metallization top coat.
  • White color.

Valve:

  • Complete manifold - right and left valve with closable bridge.
  • Operating pressure: 232 bar.
  • Bottle thread: M25×2.
  • Valve thread: DIN G5/8".
  • Rubber dial.
  • Clear for EANx.
  • Manufacturer: San-o-Sub.

Circles:

  • Diameter: 171 mm.
  • Width: 60 mm.
  • Material: steel.
  • 2 screws.
Weight of the entire set: approx. 28 kg.
