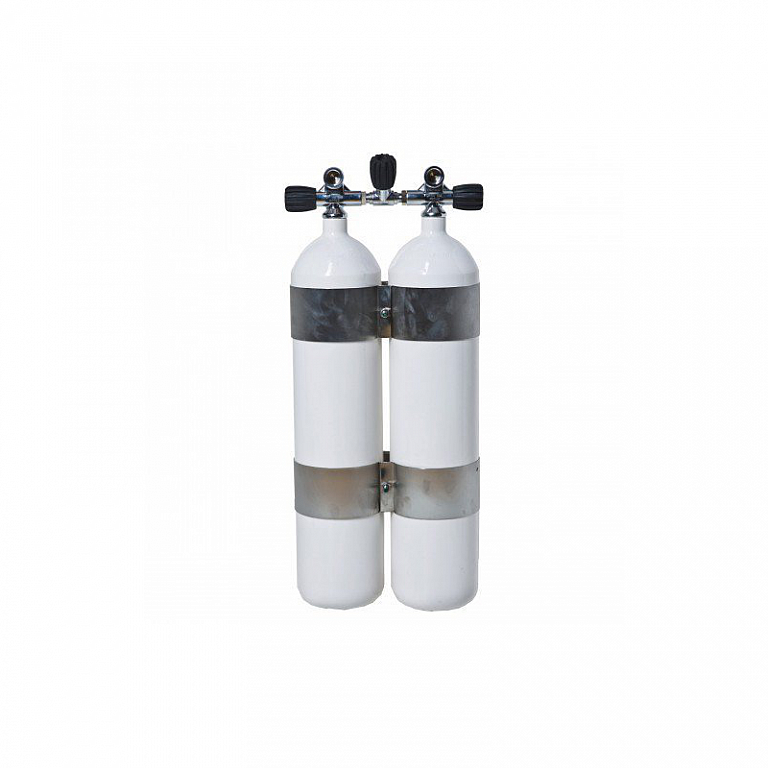

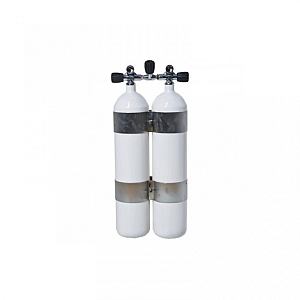

Cylinder Vítkovice Twin 2x7 L/230 bar concav

Cylinder  Vítkovice Twin 2x7 L/230 bar concav
Cylinder  Vítkovice Twin 2x7 L/230 bar concav

Cylinder Vítkovice Twin 2x7 L/230 bar concav

Brand: Vítkovice

Complete twin assembly with manifold and steel rings.  Bottle: Volume: 7 L. Operating pressure: 230 bar. Diameter: 140 mm. Bottom: concave (straight). Weight: 10.0 kg. Height: 590 mm. Thread: M25×2. Surface treatment: metallization top coat. White color. Valve: Complete manifold -…

3-4 days

614.50 €

Product details Cylinder Vítkovice Twin 2x7 L/230 bar concav

Complete twin assembly with manifold and steel rings.

Bottle:

  • Volume: 7 L.
  • Operating pressure: 230 bar.
  • Diameter: 140 mm.
  • Bottom: concave (straight).
  • Weight: 10.0 kg.
  • Height: 590 mm.
  • Thread: M25×2.
  • Surface treatment: metallization top coat.
  • White color.

Valve:

  • Complete manifold - right and left valve with closable bridge.
  • Operating pressure: 232 bar.
  • Bottle thread: M25×2.
  • Valve thread: DIN G5/8".
  • Rubber dial.
  • Clear for EANx.
  • Manufacturer: San-o-Sub.

Circles:

  • Diameter: 140 mm.
  • Width: 60 mm.
  • Material: steel.
  • 2 screws.

Weight of the entire set: approx. 25 kg.
