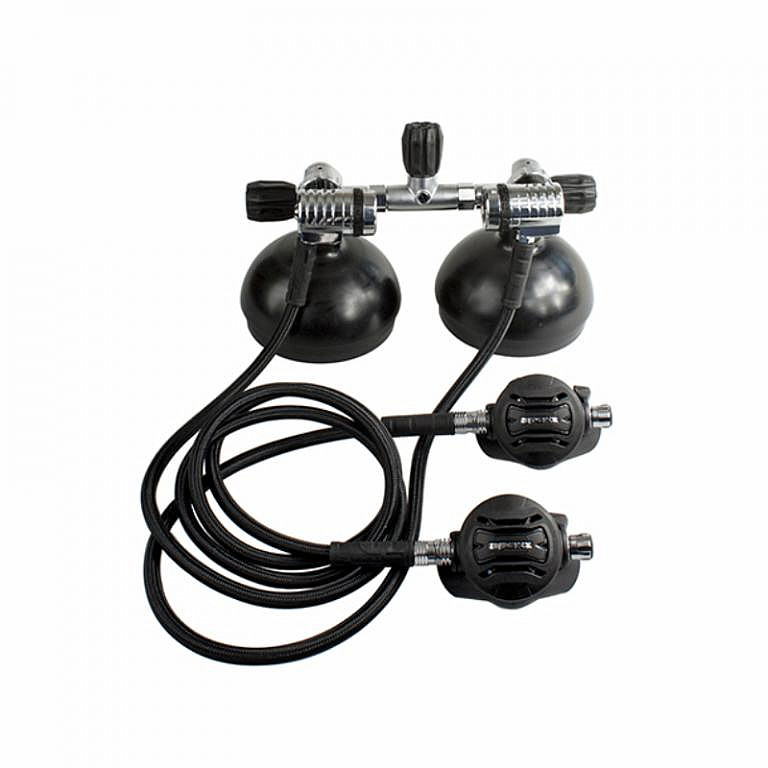

Regulator Apeks XTX50/TEK3 GAUGE TWIN
Regulator Apeks XTX50/TEK3 GAUGE TWIN
Brand: Apeks
The first TEK3 stages are highly robust and have outputs that are grouped on a base that is located on 1 side of the controller body. The hoses that come from the first stage are run parallel and mostly downwards. Thanks to this line, free access to the cylinder valves is maintained in…
3-4 days
Product details Regulator Apeks XTX50/TEK3 GAUGE TWIN
The first TEK3 stages are highly robust and have outputs that are grouped on a base that is located on 1 side of the controller body.
The hoses that come from the first stage are run parallel and mostly downwards. Thanks to this line, free access to the cylinder valves is maintained in coordination with the stage I short body. Thanks to its robust body and reinforcement with rough knurling ensuring increased surface area, the automatic is suitable for extremely cold conditions.
TEK3 is a regulator belonging to the Apeks NORSOK collection, accredited according to the Norwegian standard U-101. It sets strict requirements for these devices that are used by regular commercial divers in the oil industry.
Regulators are of course tested to a depth of 200 ms using the Heliox mixture.
1st stage TEK3, (1 x left, 1 x right)
- membrane balanced
- closed by a dry chamber - DS system
- 3 x MP outlet 3/8" UNF
- 1 x HP outlet 7/16" UNF
- location of MP outputs: on the desktop
- all-metal body with maximum surface area
- variant R (right) and L (left) for double assembly
- material: brass
- surface finish: polished chrome
- weight: 690 g
- DIN 300 bar, all-metal fitting
- EN250A
2nd stage XTX50 (2x)
- pneumatically balanced
- venturi effect controller
- DCE: the possibility of deploying two types of exhalation deflectors
- RVS: option to connect the hose from the left or right side
- CRC: screw for continuous regulation of inspiratory resistance
- front cover made of very strong composite material
- large shower button with dual flow control
- heat exchanger
- antibacterial treatment
- COMFO-BITE antibacterial mouthpiece
- silicone exhalation valve
- weight: 240 g

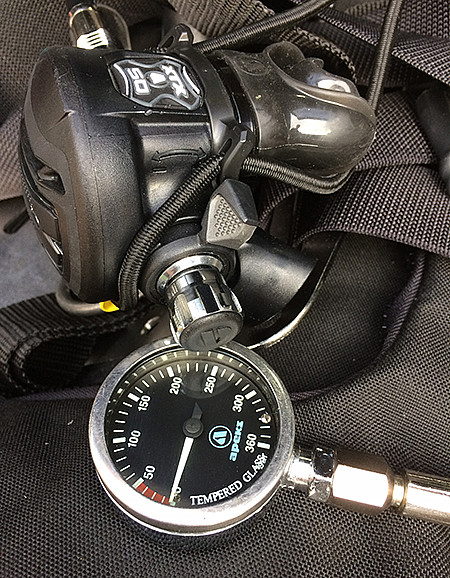

TECH manometer (1 x)
- nickel plated brass body
- tempered glass window
- black dial, white scale
- diameter 52 mm
Hose
- 1 x MP, TX, 0.61m, 3/8" UNF, DSW, Black
- 1 x MP, TX, 2.1m, 3/8" UNF, DSW, Black
- 1 x HP, TX, 0.65m, 7/16" UNF, Black
Accessories
- Bungee Connector Kit
- exhalation deflectors short, 2 pairs
